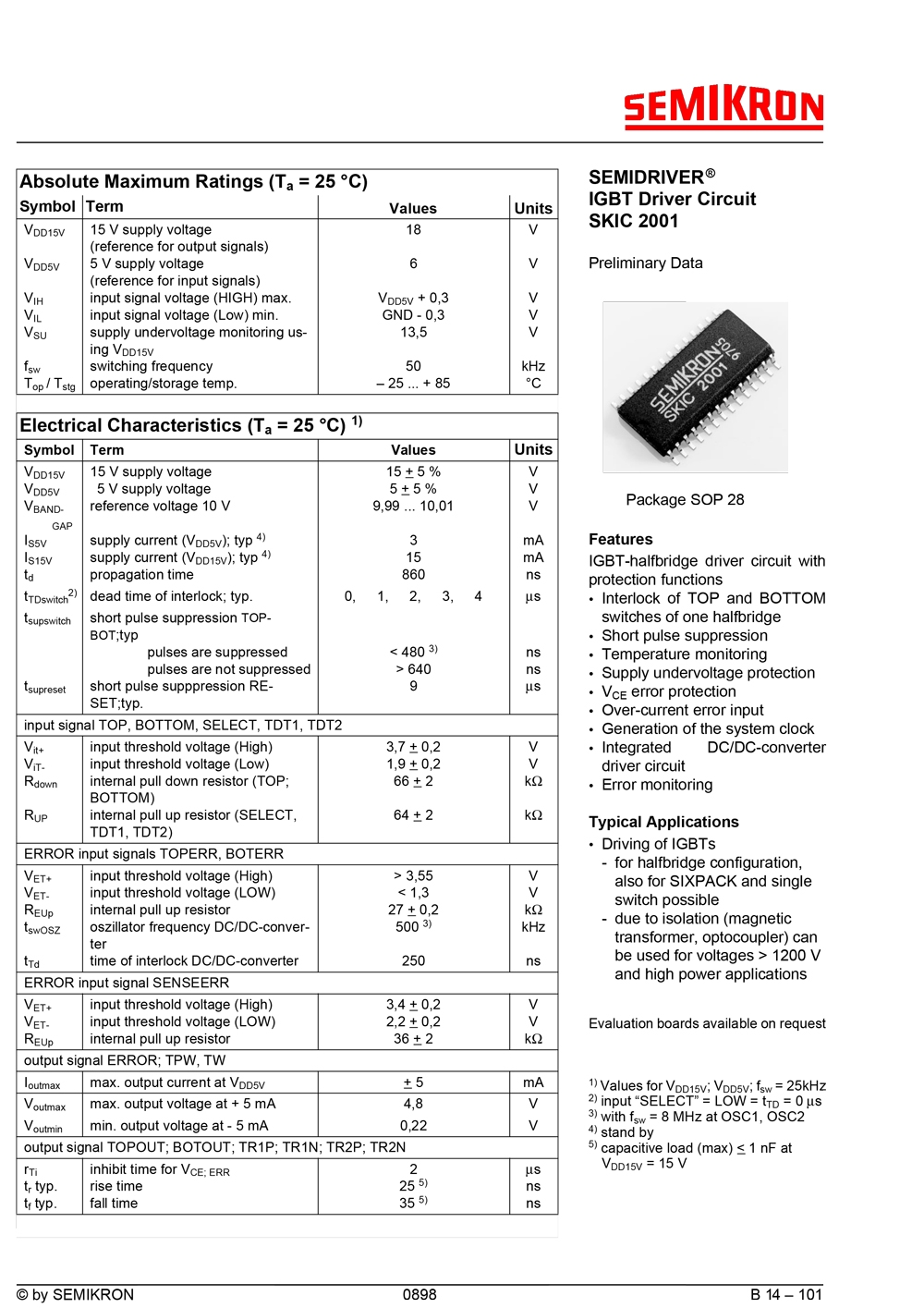

Features
IGBT-halfbridge driver circuit with protection functions
• Interlock of TOP and BOTTOM switches of one halfbridge
• Short pulse suppression
• Temperature monitoring
• Supply undervoltage protection
• VCE error protection
• Over-current error input
• Generation of the system clock
• Integrated DC/DC-converter driver circuit
• Error monitoring

Typical Applications
• Driving of IGBTs
– for halfbridge configuration, also for SIXPACK and single switch possible
– due to isolation (magnetic transformer, optocoupler) can be used for voltages >  1200 V and high power applications
